How To Design A Retaining Wall That Lasts 30+ Years

How to design a 30+ year retaining wall: strong base materials, plan for good drainage, size the wall for the load. Walls that were meant to last utilized poured concrete, solid stone, or strong block. Good drainage is key, so water doesn’t push against the wall and cause cracks. Anything taller than 1 meter, check codes, and use basic tools to measure ground slope. Consider soil type because loose soil requires additional support. Anticipate weather shifts and select finishes that won’t degrade in sun or rain. With these in play, the wall can withstand wear and remain secure for decades. The main body will break down each step and provide practical project advice.

Key Takeaways

• What causes retaining walls to fail? Hydrostatic pressure, unstable bases, and saturated backfill are factors that must be understood in order to design walls that last 30+ years.
• Designing a retaining wall that lasts: how to design a retaining wall that lasts 30 years. Without first considering the site conditions, soil composition, and hydrological factors, your wall is destined for failure.
• Using careful engineering to calculate loads, reinforcement, and drainage makes the wall last longer than 30 years and saves you lots of future repair costs.
• Whether you choose engineered blocks, poured concrete, natural stone, or treated timber, quality, durable materials should suit both the structural requirements and your landscape design aspirations, keeping in mind maintenance implications well down the road.
• Following construction best practices, such as appropriate excavation, foundation preparation, installation, and backfilling, makes certain that the wall is safe and functions dependably in varying environments.
• Establishing a proactive inspection and maintenance plan and landscaping integration design, in addition to preserving the wall’s integrity, boosts property value and long-term satisfaction for property owners.

Why Most Retaining Walls Fail

Most retaining walls don’t last as long as expected because of a combination of technical, environmental, and design mistakes. Failure can take many forms, ranging from minor cracks and bulges to complete collapse. They all have similar root problems, including unseen forces, unsteady footings, and drainage issues, that require delicate consideration.

1. Pore water behind the wall causes high pressure.
2. Wrong materials can cause your wall to fail against local weather or heavy weights.
3. They built it too short or improperly designed, and it cannot retain the soil anymore.
4. Backfill that is not well compacted or loose allows the wall to move or settle, and this compromises its strength.
5. Bypassing local codes frequently implies the wall won’t endure local soil, precipitation, or earthquakes.
6. Warning signs such as leaning, bulges, or cracks indicate danger. They are ignored far too often.
7. Little wall movement is natural, approximately 1.6 mm for every 0.3 mm in height, but more signifies potential issues.
8. Absent or clogged weep holes prevent water from draining, and the pressure can push a wall to its breaking point.

The Invisible Force

Water buildup behind a wall, or hydrostatic pressure, is frequently overlooked during design. Once soil becomes saturated, this pressure increases rapidly, especially following storms or heavy irrigation. Without proper drainage, such as gravel backfill, weep holes,s or drain pipes, water has nowhere to escape. Over time, this trapped water exerts pressure on the wall and adds to the soil’s weight, resulting in bowing, bulging, or even collapse. Repairs for this type of failure are costly, and sometimes the entire structure has to be rebuilt.

The Unstable Base

A strong foundation is the backbone of any durable wall. If the soil shifts or the foundation is not sufficiently deep, the wall can tilt or sink. Site checks should have priority, with soil tests exposing how below-ground conditions may shift. Weak bases tend to result from cutting these corners or from not utilizing geotechnical techniques like compacted gravel trenches. This hazard is increased in clay soils, slopes, or freeze-thaw cycles. Any shortcut in base prep leads to walls that fail long before their design life.

The Saturated Backfill

When the backfill behind a wall gets saturated, it adds additional pressure to the structure. Drainage, such as perforated pipes and filter fabric, helps keep water from accumulating. Landscape fabric prevents soil from blocking the drainage routes, allowing water to flow unobstructed. If water can’t drain, the wall experiences continuous pressure that will, in time, cause it to lean or fail. By overlooking backfill drainage, you are condemning your wall to a shortened life and costly repairs or premature replacement.

Design A Durable Retaining Wall

Designing a retaining wall that will last for thirty years or more begins with a keen design strategy. Designing a retaining wall requires you to take local site conditions, material options, engineering, and the need for a sturdy foundation into consideration. This cautious approach protects you from common pitfalls that cause walls to fail, like inadequate drainage or insufficient foundations.

1. Assess The Site

Site analysis goes first. Consider the slope, soil type, and nearby structures. A steep slope or unstable soil requires additional engineering. Drainage is the deal-breaker; water must flow away from the wall, not collect behind it. Choose a spot that corresponds with both the terrain and your landscaping vision. This step prevents surprises that could cut the wall’s life or increase costs down the road.

2. Understand The Soil

Soil testing shows whether the ground can support the wall. Clay soils require sturdy drainage systems, for example, whereas sandy soils typically require additional reinforcement like geogrids. The soil’s pressure against the wall forms the design. For more robust, higher walls, soil reinforcement with geosynthetics or compacted horizons is essential. Soil type determines how much the wall needs to batter and how deep the base should extend.

3. Master The Water

Water is the greatest enemy of retaining walls. Careful design of drainage, including drainpipes and gravel backfill, prevents water build-up behind the wall. Even seasonal changes in rain or ggroundwaterwill exert pressure on the structure. Retaining walls that last have a drainage system to divert water safely and quickly. This phase is not an afterthought; it is essential for permanent reliability.

4. Calculate The Load

Your wall has to hold back dirt, as well as water and perhaps adjacent structures or traffic. With the help of engineering software, determine the required thickness and strength of the wall. Little walls under 1 meter might not require linear algebra, but anything higher needs rigorous engineering. In earthquake areas, consider seismic loads. Overlooked loads are a frequent culprit.

5. Integrate Reinforcement

For additional reinforcement, incorporate geogrids, steel rebars, or anchors. A 2-meter wall should have geogrids extending at least 1.1 meters into the backfill. Anchored walls provide extra stability for challenging sites and higher walls. Reinforcement is required for walls taller than 1.2 meters and assists with lateral forces from the soil. Selecting the appropriate technique depends on the soil, the wall height, and anticipated loads.

Choose Your Wall’s Armor

The key to a long-lasting retaining wall comes down to material selection, design suitability, and maintenance. They each have their own balance of toughness, fashion, and price. The right match should last for decades, complement your landscape, and meet your budget without lurking issues long term.

Engineered Blocks

• Factory-made for uniform strength and fit.
• Many colors, sizes, and textures for flexible design.
• Often include interlocking features for quick, stable builds.
• Easier to stack for curved, tiered, or stepped walls.

Engineered concrete blocks are durable, weather-resistant, and common where both ruggedness and a sleek look count. Prevalent in city parks, gardens, and driveways, they take loads well and conform to both simple and complex shapes. Their evenness accelerates installation and simplifies repairs or remodels. Priced typically between $20 and $60 per square foot, they strike a balance between rugged endurance and cost-effectiveness. Today’s versions can accommodate LED lighting, a modern touch that makes it really pop at night.

Poured Concrete

If you have high walls or heavy soils to contend with, poured concrete provides unbeatable strength and a seamless, monolithic construction. Specially shaped custom forms allow you to contour the wall for curves, corners, or daring geometric faces. They come in smooth or textured finishes and can be colorized for flair. Appropriate curing, careful and deliberate moisture management, is key. Without it, cracks and weak spots will develop. Additives like fibers or water reducers can enhance its strength and weather resistance. Although upfront costs are steeper, up to $150 per square foot, a well-constructed concrete wall can endure 50 to 100 years with minimal maintenance.

Natural Stone

Natural stone has a classic appearance and can become a focal point of your design. Granite, limestone, and slate are hard, weather-resistant, and bug-resistant. It’s hard to find good stones and craftsmen, and it installs more slowly than other materials. Stone walls require repointing and occasional weed control, but seldom suffer structural problems. When used creatively, they fade into both contemporary and traditional surroundings. Prices span a broad spectrum, at times going over $200 per square foot for exotic or imported stone.

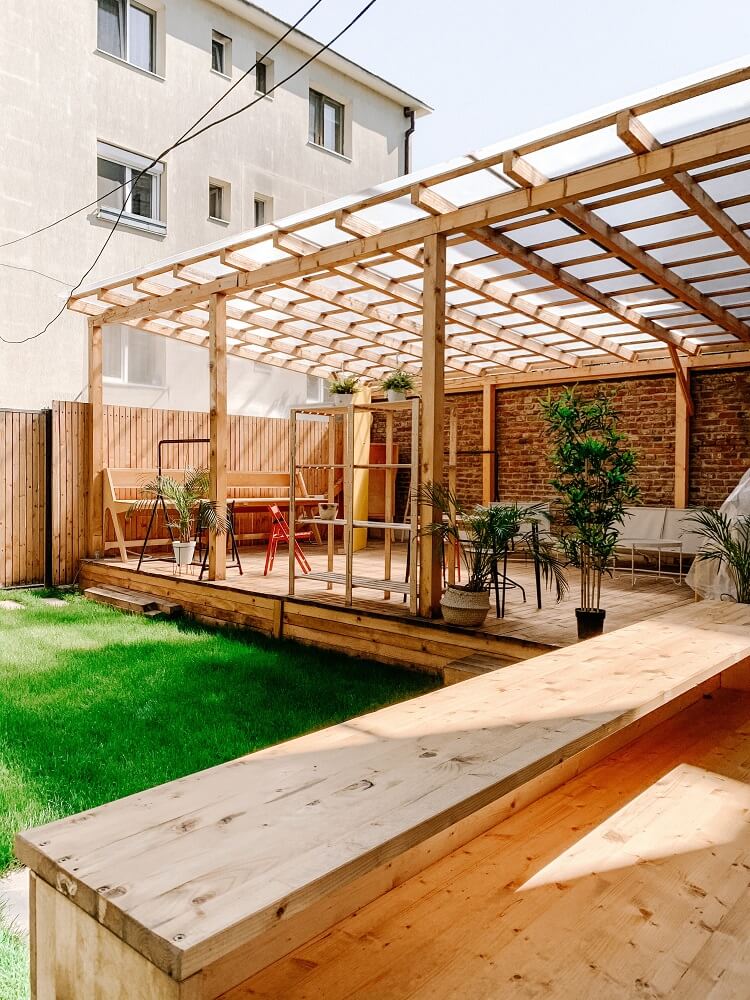

Treated Timber

Treated timber is typically selected for straightforward, economical projects, with initial pricing beginning at $5 per square foot. Treated softwoods resist rot and bugs but have a shorter lifespan of about 20 to 40 years. Timber works best in rustic or casual outdoor spaces and can be stained or painted. It’s lighter and simpler to craft than stone or concrete. Maintenance is ongoing, as regular sealing, replacement of damaged planks, and checking for rot are a must. Opt for sustainably sourced woods and lower chemical treatments to reduce environmental footprint.

From Blueprint To Reality

Transforming a retaining wall idea into a durable reality requires a systematic approach, diligent concern for quality, and constant collaboration among all stakeholders. Obtaining permits and approvals from local authorities is mandatory since every area has its own building codes and environmental guidelines. Contractors and suppliers need to remain coordinated to maintain materials and equipment on schedule, reducing lag. Hands-on supervision at each step ensures the build stays true to the blueprints.

Excavation

Digging the hole – literally – defines the project. The trench needs to be sufficiently deep and wide to accommodate the wall, drain tile, and proper backfill. At the very least, a full course of blocks needs to be buried along with 150 to 200 millimeters (6 to 8 inches) of base gravel. Soil type and stability are important; sandy or loose soils might require additional shoring to prevent cave-ins. All excavated material has to be managed and disposed of in accordance with local regulations, which may mandate recycling or safe disposal at designated facilities. For instance, clay-heavy soil left on-site can cause drainage problems down the road, so removing it is smart.

Foundation

A solid base is important. Concrete footings or well-compacted gravel make the wall stable and allow it to support the weight for decades. The foundation needs to be absolutely level. A few millimeters of difference can result in shifting or failure. If you live in a freezing region, your footings should be below the frost line to avoid heaving during freeze-thaw cycles. All foundations should be verified against local codes and standards, which determine minimum size and reinforcement, particularly for higher walls.

Installation

Precise material positioning is essential. Lay each block or timber flat and straight, beginning with the bottom course, because any mistakes will be compounded as the wall grows. A simple hand tamper or plate compactor will help you torque down to a flat, stable start. Structural tiebacks, such as timber “deadmen” for wood walls over 4 feet, provide additional support. Specific tools, including rubber mallets and levels, ensure accuracy with every successive layer. Periodic design reviews keep you on track.

Backfilling

Backfilling is not only for backfilling; it’s pressure management and drainage. Granular material such as 20-millimeter (3/4-inch) gravel avoids water accumulation. Compact each layer, no more than 150 millimeters (6 inches) deep, with a hand tamper. A four-inch (100-millimeter) perforated PVC drainpipe installed at the base directs water away and guards the wall against hydrostatic pressure. For added protection, gravel backfill ought to slope away from the wall at 25 millimeters per 1.2 meters (1 inch per 4 feet).
